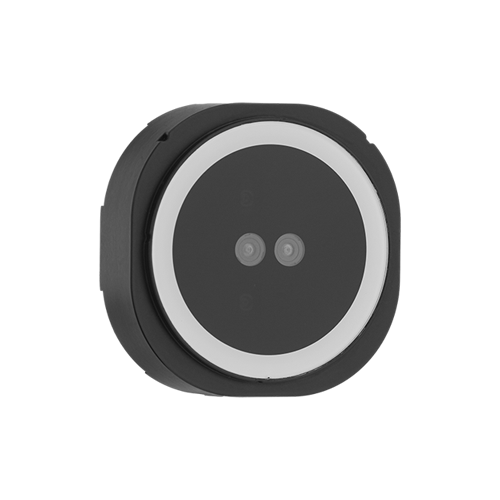

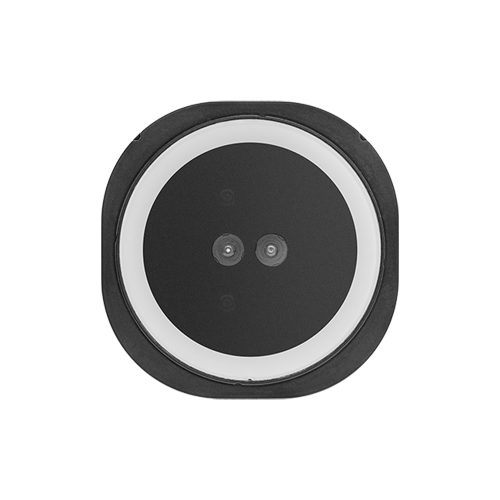

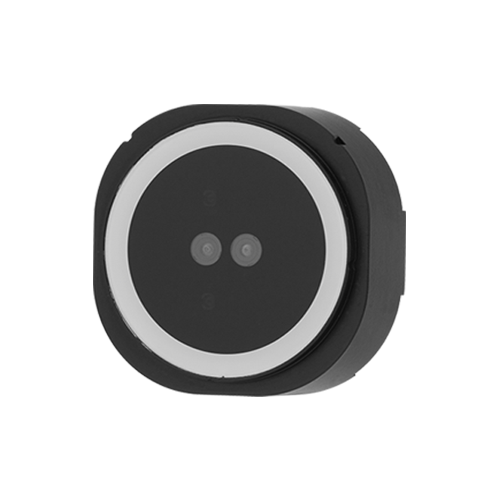

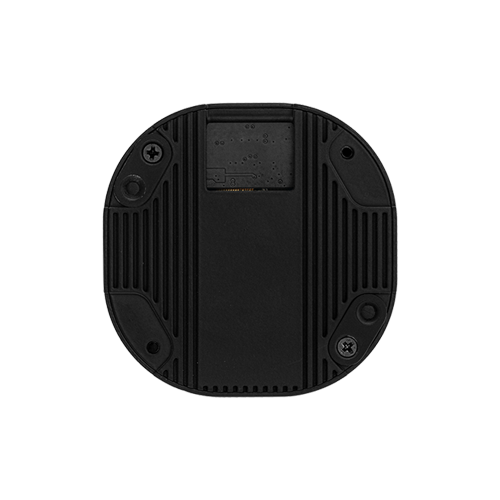

AMT-PVS-50
High Precision Dual Camera Standalone Palm Module
AMT-PVS-50 is an intelligent computer vision module which utilizes visible light and near-infrared light (NIR) dual-cameras to capture palm
images for high-accuracy biometric recognition.
• The dual-camera module provides a wide field-of-view (FOV) up to 145°, enhancing user experience for palm recognition operations.
• The module comes with multi-color LED lights that help users adjust palm positions and receive real-time visual feedback.
| Camera Type | Visible Light Camera |
|---|---|
| CMOS | 1/5” CMOS, 1.3MP |
| Frame per second | 25fps /30fps |
| Image Resolution (Pixel) | Visible Light Camera : Raw: 1024W * 1280H Output: 720W * 1280H |
| Image Type | Visible Light Camera : 24-bit RGB true color |
| Palm Liveness Detection Time | <20ms (infrared-visible light mode; Infrared light mode) |
| 1:N Capacity[2]: | 30,000 |
| Recognition Distance | 5cm-15cm |
| Field of View (FOV) | Horizontal: 116°, Vertical 95°, Diagonal: 145° |
| Default Output Format | MJPEG |
| Dimension | 62.0(L) x 62.0(W) x 20.0(H) mm (±1mm) |
| Biometric Recognition Method | Palm |
| Communication | UVC and HID Protocol |
