EP10C

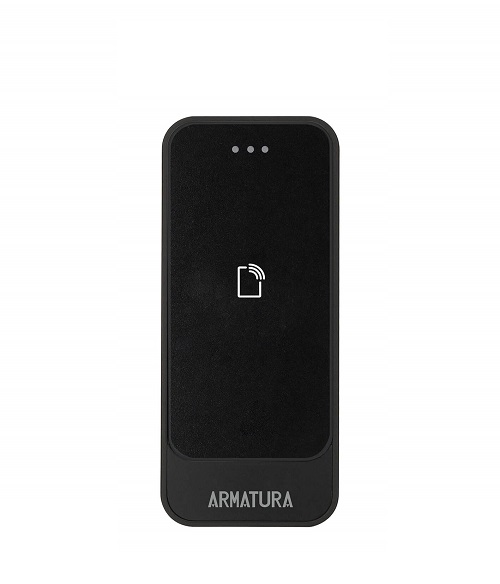

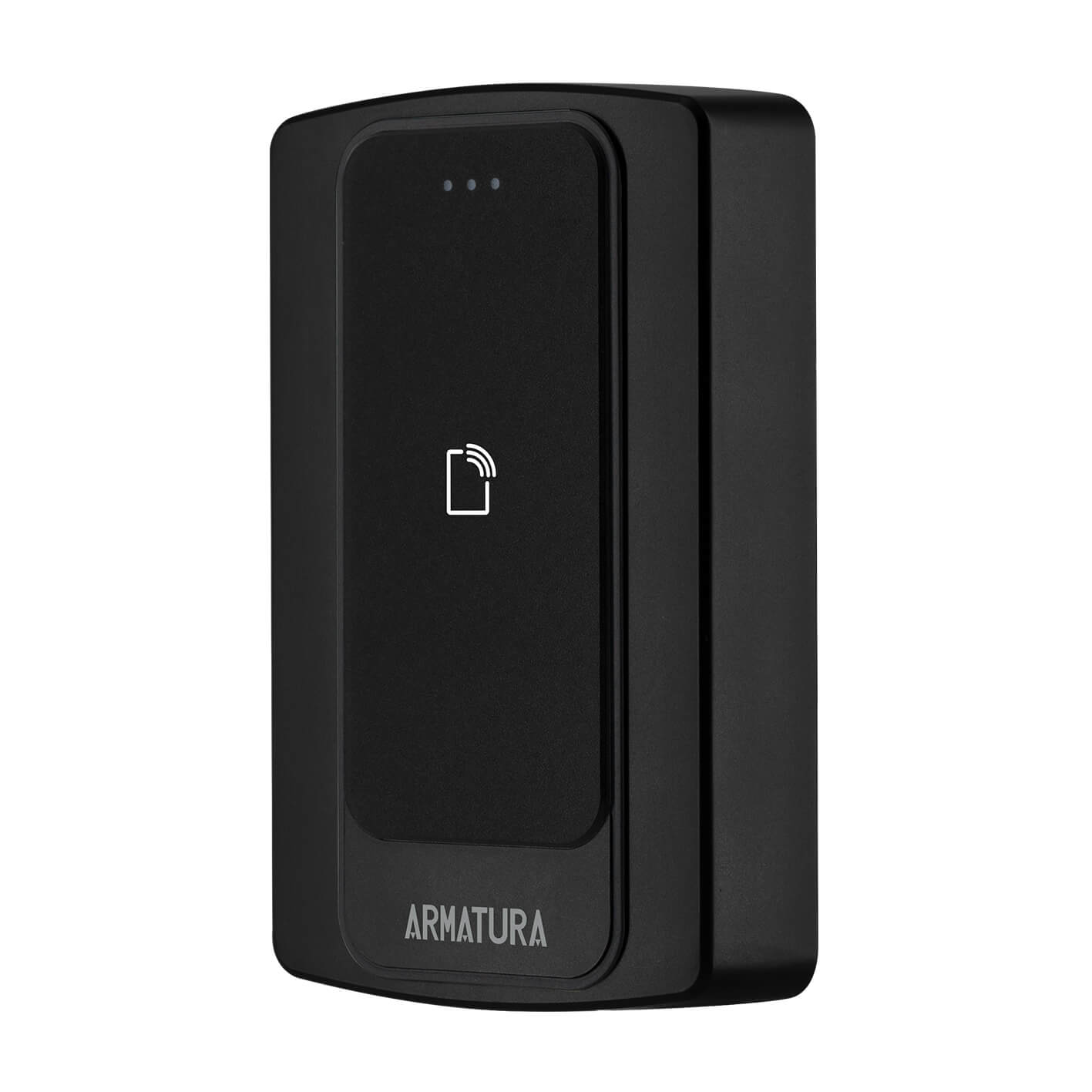

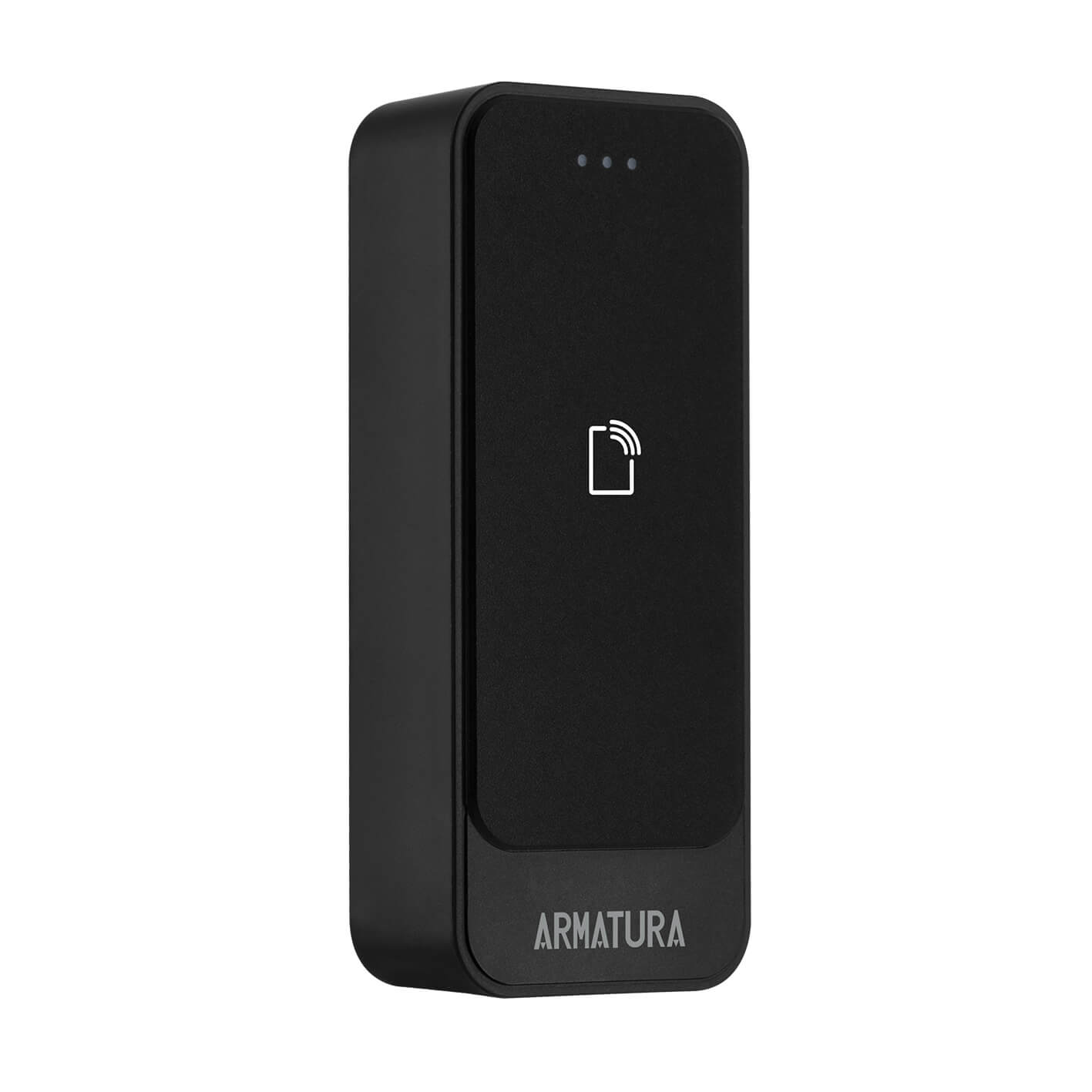

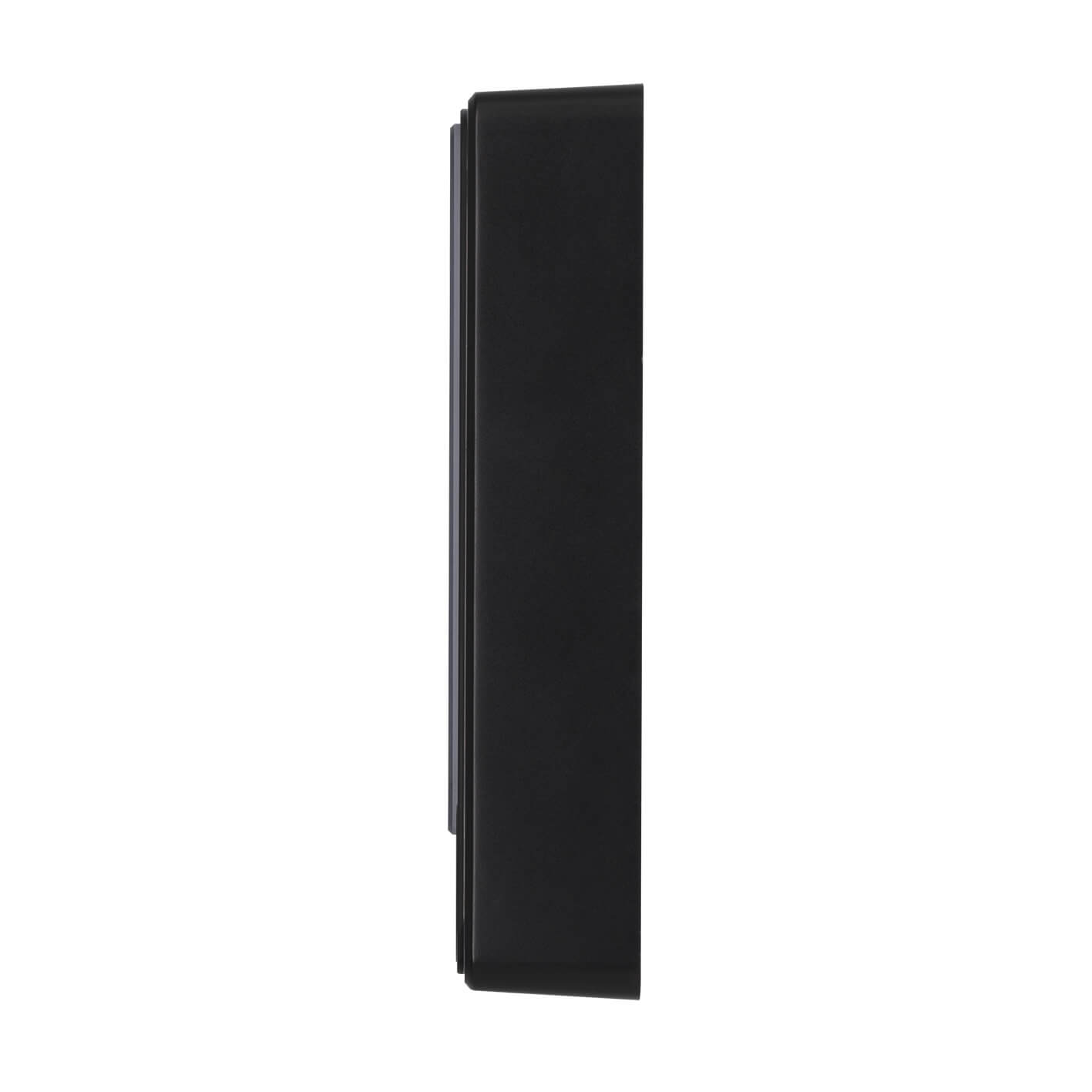

The EP10C mullion reader series is one of the most compact multi-tech RFID readers in the market, which supports over 100 RFID card types and both mobile NFC and Bluetooth (Low Energy) and is suited for mullion-mount door installations or any flat surface mounting.
| Audio Indicator | Internal buzzer with adjustable intensity (Configurable By 'Armatura Connect' Mobile APP) |
|---|---|
| Communications & Panel Connection | Wiegand (Up to 128bits SCP Secure Communication) |
| Data Protection | AES128 (Secured Communication between Reader & Controller) |
| Dimension | Standard Cover: 1.89" W x 4.52" H x 0.97" D (48 x 114.8 x 24.7mm) |
| Housing Material | Polycarbonate UL94-V0 & UL746C (F1) |
| Visual Indicator | RGB LEDs (Configurable By 'Armatura Connect' Mobile APP) |
| Reading Distance | 13.56MHz & 125kHz: Up to 2.3"/60 mm (depending on environment and transponder) |
| Standard Functions | RFID and Bluetooth |
