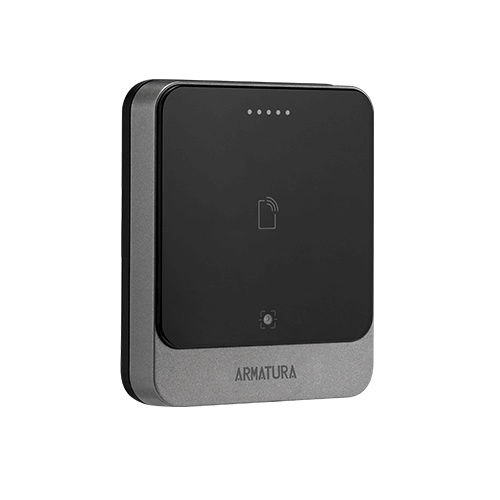

EP20 Series

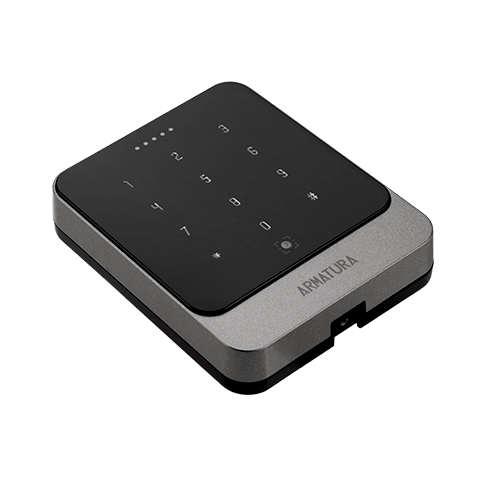

EP20 Series - Image 2

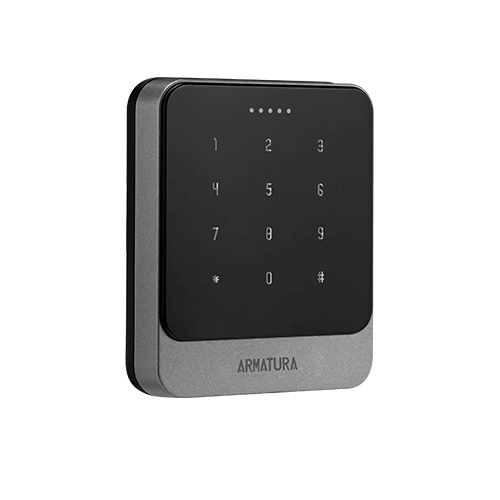

EP20 Series - Image 3

EP20 Series - Image 4

Armatura Reader

EP20 Series

ll Weather Outdoor Multi-tech Smart Reader

• Designed for Advanced Security

• Supports Over 100 RFID Credential Types

• Touch Keypad / QR Code Scanner

SKU: EP20 Series Category: Armatura Reader

Attachment
Additional information

EP20 Series Data Sheet

Audio Indicator	internal buzzer with adjustable intensity (Configurable By 'Armatura Connect' Mobile APP)
Communications & Panel Connection	Wiegand OSDP (v2.2) via RS-485 (Up to 128bits SCP Secure Communication)
Data Protection	AES128 (Secured Communication between Reader & Controller) Secure Data Storage in EAL6+ Certified Crypto Chip
Dimension	3.54" W x 4.24" H x 0.93" D (89.8 x 107.8 x 23.6mm)
Internal Number	EP20C EP20CK EP20CQ EP20CKQ
Operating Frequency / Standards	125 kHz 13.56 MHz: ISO14443 types A & B, ISO15693 2.4 GHz Bluetooth
Operating Temperature	-22°F – 158°F /-30°C to 70°C
QR Code Capability	One-Dimensional Code: UPC-A , UPC-E, UPC-E1, EAN-8, EAN-13, EAN-14, EAN-128, UCC128, ISBN/ISSN, CODE11, CODE32, CODE39, CODE39 Full ASCII, CODE93, CODE128, Interleaved 2 of 5 code, Industrial 2 of 5 code, Matrix 2 of 5 code, Toshiba code, UK/Plessey, GS1 Two-Dimensional Code: QR code, PDF417, Data matrix, MicroPDF417, Aztec
QR Code Scan Angle	EP20C : N/A EP20CK : N/A EP20CQ : Horizontal: 66°/ Vertical: 50° EP20CKQ : Horizontal: 66°/ Vertical: 50°
QR Code Scanner	EP20C : N/A EP20CK : N/A EP20CQ : Supported EP20CKQ : Supported
QR Code Scanning Pattern	EP20C : N/A EP20CK : N/A EP20CQ : Area image (648488 pixel array) EP20CKQ : Area image (648488 pixel array)
QR Code Scanning Performance*	EP20C : N/A EP20CK : N/A EP20CQ : Narrow Width 6.0 mil (Code128) / 9.0 mil (Code128) / 15.0 mil (Code128) / 20.0 mil (Code128) / 6.0 mil (QR) / 9.0 mil (QR) / 15.0 mil (QR) / 20.0 mil (QR) EP20CKQ : Depth of Field 2.0"-3.1" (5cm-8cm) / 2.0"-4.7" (5cm-12cm) / 2.3"-7.7" (6cm-19.5cm) / 2.3"-9.8" (6cm-25cm) / 2.0"-2.3" (5cm-6cm) / 2.0"-3.5" (5cm-9cm) / 2.0"-6.3" (5cm-16cm) / 2.3"-7.9" (6cm-20cm)
Reading Distance	13.56MHz & 125kHz: Up to 2.3"/60 mm (depending on environment and transponder) Up to 393.7"/ 10m with a Bluetooth Smartphone (configurable distances on each reader)
Standard Functions	RFID, Bluetooth and QR code
Visual Indicator	RGB LEDs (Configurable By 'Armatura Connect' Mobile APP)
