FT10CMQ

FT10CMQ

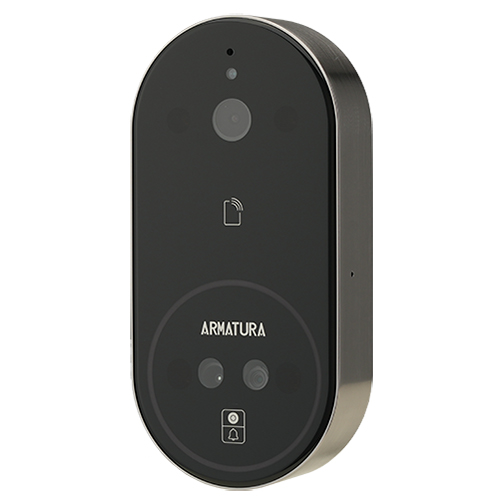

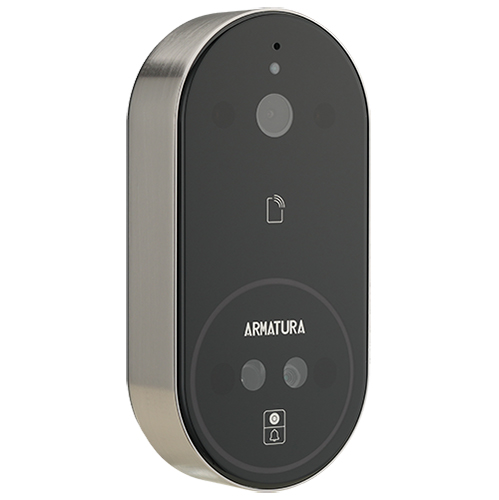

All Weather Multi-Tech Smart Multimodal Biometric Terminal

• Multimodal biometric technology, touchless palm and face authentication

• IP66 & IK07 Dustproof, waterproof and impact protection rating

• Supports 125 kHz and 13.56 MHz frequency credentials

• Supports reader (Coming soon) and standalone terminal mode

• Supports multiple mount types (Single gang/ European/ Asian box)

Memory	2 GB RAM + 16 GB Flash
Camera	CMOS, 2 MP resolution IR: Global shutter CMOS, 1.3 MP resolution IR-CUT：CMOS, 2 MP resolution Resolution: 720*960 pixels
User Capacity	50,000
RFID Card Capacity	50,000
Face Capacity	10,000 (1:N)/ 50,000 (1:1)
Palm Capacity	5,000 (1:N)/ 20,000 (1:1)
QR Code Detection	QR Code Scanner: Supported QR Code Scanning Pattern: Area image (7201280 pixel array) QR Code Scan Angle: Horizontal: 37.9°/ Vertical: 62.9° QR Code Capability: QR Code (Armatura ID); Static QR (customizable) QR Code Scanning Performance： Armatura ID QR Code：0.5''-2.05'' (12.7mm – 52.07mm); BioCode：0.59''-1.26'' (15mm – 32mm)
Inputs	Wiegand, Button, Sensor, Aux
Outputs	Wiegand, Lock Relay, Alarm Relay (Relay via dry contacts), Bell Relay(Relay via dry contacts)
Operating Frequency/ Standards:	125KHz; 13.56MHz: ISO14443 types A&B, JIS X6319, ISO15693 2.4GHz Bluetooth
