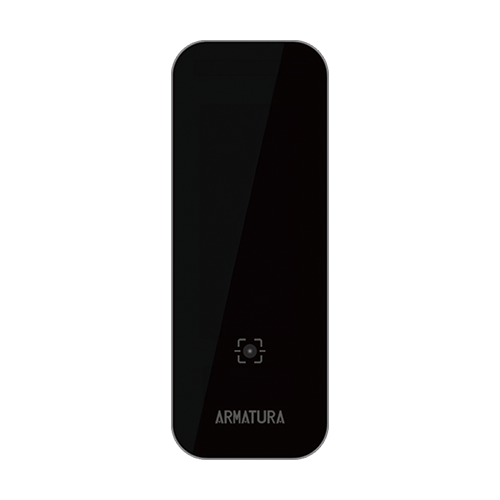

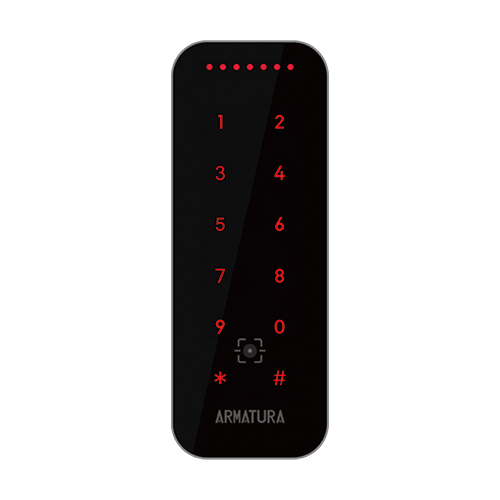

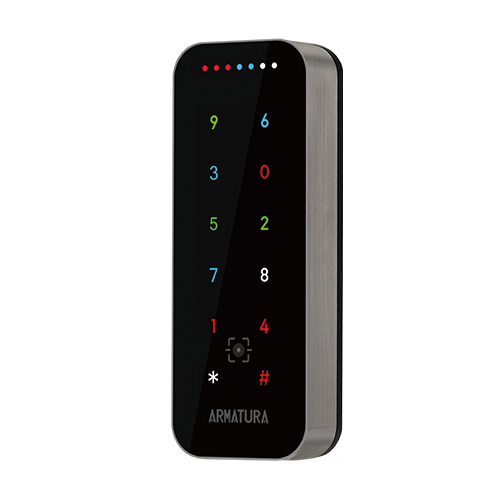

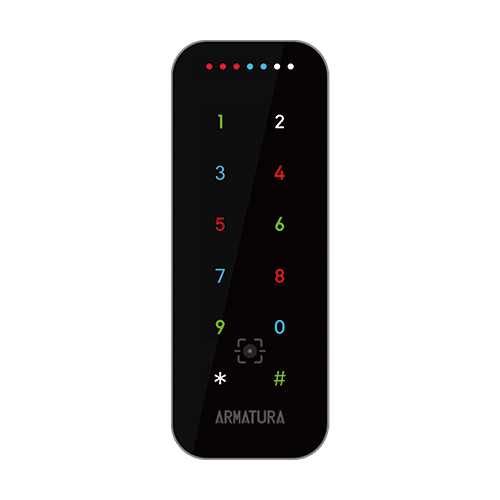

VG10CKQ

All-Weather Outdoor Multi-Tech Smart Reader

• Designed for Advanced Security

• Supports Over 100 RFID Credential Types

• Touch Keypad / QR Code Scanner

SKU: VG10CKQ Category: Armatura Reader

Attachment
Additional information

VG10CKQ Data Sheet

Download(11 MB)

Model	VG10CKQ
Operating Frequency / Standards	125 kHz 13.56 MHz: ISO14443 types A & B, ISO15693 2.4 GHz Bluetooth
QR Code Capability	One-Dimensional Code: Code 128, Code 39, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey Two-Dimensional Code: QR Code, Micro QR
QR Code Scan Angle	Horizontal: 68°/ Vertical: 51°
QR Code Scanner	Supported
QR Code Scanning Pattern	Area image (640*480 pixel array)
QR Code Scanning Performance*	Narrow Width 9mil（QR） 15mil（QR） 20mil（QR） 6mil（Code128） 9mil（Code128） 15mil（Code128） 20mil（Code128） Depth of Field 1.5''-2.5''（40mm-65mm) 0.3''-4.3''(10mm-110mm) 0.5''-4.5''(15mm-115mm) 1.7''-3.7''(45mm-95mm) 0.9''-5.1''(25mm-130mm) 0.9''-6.1''(25mm-155mm) 1.7''-5.5''(45mm-140mm)
Communications & Panel Connection	Wiegand OSDP (v2.2) via RS-485 (Up to 128bits SCP Secure Communication)
Data Protection	AES128 (Secured Communication between Reader & Controller) Secure Data Storage in EAL6+ Certified Crypto Chip
Visual Indicator	RGB LEDs (Configurable By 'Armatura Connect' Mobile APP)
Audio Indicator	Internal buzzer with adjustable intensity (Configurable By 'Armatura Connect' Mobile APP)
Protection / Resistance	Weather & Dust Proof Protection Rating compliant with IP66 Reinforced Vandal-proof Structure IK07 certified
Reading Distance	13.56MHz & 125kHz: Up to 2.3"/60 mm (depending on environment and transponder) Up to 393.7"/ 10m with a Bluetooth Smartphone (configurable distances on each reader)
Standard Functions	RFID, Bluetooth and QR code
